64pixels 16*16cm ws2812b flexible led matrix unit

By Greeled Electronic Ltd
http://www.gree-leds.com/productshow.asp?ArticleID=Z54SX8ZZXX
This is a easy 8Pixel*8pixel DIY digital led matrix unit,designing with slide fastener, they locate at four edge of led martrix. You can pull the edge'slide fastener to enlarge led matrix at four direction. Example: you can use 2pcs led matrix unit to make a 8pixel*16 pixel led matrix. or use 4pcs led matrix unit make a 8pixel*32pixel led matrix. and stick gelatin sponge at the back of units, you only need peel it to stick anywhere.
Technical Parameter:
Working Voltage: DC5V
Size: 16cm(6.3")*16cm(6.3")*0.5cm(0.2")
LED QTY: 64 Pcs (8Pixel*8Pixel)
Pitch distance: 2cm(0.794")
IC Type: WS2812B Chip built in SMD5050
PCB materil: FPC
Waterproof: Non-waterproof
Emiting color: RGB, Input Signal: SPI/TTL signal
Power: Max 20 Watt
G.W: 80g/pc (Non-waterproof)
Datasheet:
https://drive.google.com/file/d/0B97rs4obIwdZSVI3Sm16S2tWMFk/view?usp=sharing

apa102 white color embedded led strip

http://www.greeled.net/white-color-apa102-led-strip.html
Woking Voltage: 5V DC
Pixel QTY: 32pixel/m,48pixel/m,60pixel/m,66Pixel/m,144Pixel/m
IC Type: APA102 Chip-built-in
Emitting color: Warm white, Natural white, Pure white
Datasheet:
https://drive.google.com/file/d/0B97rs4obIwdZNXQ2STBjdHIxeFU/view?usp=sharing

white color apa102 chip built in smd5050 led
http://www.greeled.net/apa102-led-white-color.html

white color chip built in apa102 smd5050 led

http://www.greeled.net/apa102-led-white-color.html
APA102 is a intelligent control LED light source that the control circuit and Tri-blue chip with
fluorescent powder are integrated in a package of 5050 components. It internal include 3 groups shift register and Self-detection signdecoder circuit. Also include a 4.5V voltage regulator part and continuous oscillator effectively ensuring the pixel point light color height consistent. The data transfer protocol use two line decoder mode. After the pixel power-on reset, the DIN port receive data from controller after decorder , the first pixel collect initial 24bit data then sent to the internal data register, the other data which reshaping by the internal signal decorder circuit sent to the next cascade pixel through the DO CO port. After transmission for each pixel. LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.
Datasheet:
https://drive.google.com/file/d/0B97rs4obIwdZMXpDM3JYXzRFT2s/view?usp=sharing

apa102 white led strip
http://www.greeled.net/white-color-apa102-led-strip.html

flexible ws2812b led neomatrix panel

http://www.gree-leds.com/productshow.asp?ArticleID=T1R71Z9W93

4pcs 16*16pixel neomatrix = 1pc 16*64pixel led panel display
16*64pixel,made by 4pcs 16*16pixel ws2812b matrix16*64cm,controlled by GECOSD4P-4096 sd card digital controller, effects edited by lededit2014 software

32*32pixel ws2812b led neomatrix panel
32*32pixel,made by 4pcs 16*16pixel ws2812b matrix 32*32cm,controlled by GECOSD4P-4096 sd card digital controller, effects edited by lededit2014 software

How To Combine DIY WS2812B LED Matrix Unit

By Greeled Electronic Ltd

http://www.greeled.net/diy-ws2812b-led-matrix-unit.html

Model: GEMA2812B256P1 This is an easy 16Pixel*16pixel DIY digital flexible led matrix unit, Pitch distance is 1cm,designing with slide fastener,they locate at four edges of led martrix. You can pull the edge’slide fastener to enlarge led matrix at four direction. Example: you can use 2pcs led matrix unit to make a 16pixel*32pixel led matrix. or use 4pcs led matrix unit make a 16pixel*64pixel led matrix or 32pixel*32pixel led matrix. and stick gelatin sponge at the back of units, you only need peel it to stick anywhere.

Step 1: 2PCS Separated 16*16Pixel 256PCS WS2812B LED Matrix

Step 2: Connect the slide fastener of edge together

Step 3: Pull slide fastener of edge

Step 4: Go on pulling, until these 2pcs DIY matrix units become as 1pc 16*32Pixel Screen Panel

Working With Our SD Card LED Controller (GECOSD1P-2048)

Working With Our 5V Power Supplier

http://www.greeled.net/5v-led-power-supplier.html

The Effect Picture of this 16*32Pixel (DIY Made by 2pcs Matrix Unit) Panel:

WS2812B DIY Matrix Unit

16*16 Pixels WS2812B Soft LED Matirx Display
WS2812B DIY Matrix Unit
DIY Flexible LED Matrix Panel
http://www.greeled.net/diy-ws2812b-led-matrix-unit.html
This is a easy 16Pixel*16pixel DIY digital led matrix unit,designing with slide fastener, they locate at four edge of led martrix. You can pull the edge'slide fastener to enlarge led matrix at four direction. Example: you can use 2pcs led matrix unit to make a 16pixel*32pixel led matrix. or use 4pcs led matrix unit make a 16pixel*64pixel led matrix. and stick gelatin sponge at the back of units, you only need peel it to stick anywhere.
Technical Paramter:
Working Voltage: DC5V
Size: 16cm(6.3")*16cm(6.3")*0.5cm(0.2")
LED QTY: 256 Pcs (16Pixel*16Pixel)
Pitch distance: 1cm(0.397")
IC Type: WS2812B Chip built in SMD5050
PCB materil: FPC
Waterproof: Non-waterproof/ IP65
Emiting color: RGB, Input Signal: SPI/TTL signal
Power: Max 70Watt
G.W: 90g/pc (Non-waterproof), 200g/pc(IP65)
Datasheet link:
Note: if you need other Size and IC' matrix, we here can support OEM and ODM.

5MM Clear WS2811 NeoPixel String

5MM Clear WS2811 NeoPixel String
http://www.greeled.net/ws2811-programmable-mini-rgb-string.html
working Voltage: 5V DC
Power Consumption: 0.24W/Pcs
IC type: WS2811 chip built in
Waterpoof Type: IP67
Punch holes size: Diamter 9MM
Size of LED light: 5MM
Material of crust: Clarity PVC
Connect 50pcs each strand
RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each RGB LED and controller chip is molded into a 'dot' of silicone. The dots are waterproof and rugged. There are four flanges molded in so that you can 'push' them into a 9mm drill hole in any material up to 1.5mm/0.06" thick. They're typically used to make outdoor signs.
Sold by the strand, each strand has 50 pixels in series!The pixels are connected by a 3-conductor cable. +5V, ground, data . Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end

5mm strawhat neopixel led

5MM NeoPixel Trough-Hole LED
5mm strawhat neopixel led
http://www.greeled.net/5mm-strawhat-neopixel-led.html
5mm clear neopixel base on ws2811/ws281b single wire SPI protocol, it is through-hole with 4feet.color output series" RGB format", Built-in 800khz colok. it can work with high speed PWM for 8bits color.
Parameter:
Working Voltage: DC5V
IC type: WS2811 chip-built-in
Beam angle: 120 degree
power consumption: Max 0.24W/pc
G.W: 300g/Package

DIY-USB RGB LED CONTROLLER,Music LED Controller

DIY USB effects led controller
24Key Mini Tunable White LED Controller
2.4G 4A 4CH RF LED Dimmer
LED CONTROLLER Light Sensor & Time Control
 Wall-Mounted Touch Panel Music Controller
12-24V 24Key IR Music Led Controller
http://www.greeled.net/uploadfile/03/60/6003/21141/11/23/led-controller-catalogue.pdf

DMX512 WiFi LED Controller

12CH Programmable RGB DMX512 Controller
5-24V 5A 3CH RF DMX Decoder
2.4G DMX Signal Converter
24CH DMX Decoder Controller
Art Net WIFI DMX Converter WIFI310
4A 3CH RGB WiFi Controller
USB-DMX 512 BOX Controller
DMX Touching Screen Mainly Controller
http://www.greeled.net/uploadfile/03/60/6003/21141/11/23/led-controller-catalogue.pdf

Brightness Adjustable LED Dimmer

2.4G 4A Grouping Bright LED Dimmer
5Key Trouch Plastic Shell RF Led Dimmer
5Key Trouch Ring RF Led Dimmer
11Key 4A RF Wireless Led Dimmer
11Key 6A RF Wireless Led Dimmer
2.4G 4A 4CH Bright Group LED Dimmer
http://www.greeled.net/uploadfile/03/60/6003/21141/11/23/led-controller-catalogue.pdf

Touching CCT LED Controller

2.4G 4A Grouping CCT LED Controller
2.4G 6A Subgroup CCT LED Controller
RF Touch Tunable White LED Controller
5Key Trouching Ring CCT Led Controller
CCT Touching Ring Panel Controller
6A Touching CCT LED RF Controller
5Key Touching RF CCT Panel Controller
2.4G 2CH 8A Touch Ring CCT Controller
http://www.greeled.net/uploadfile/03/60/6003/21141/11/23/led-controller-catalogue.pdf

RF Wireless Remote RGB LED Controller

Full Touching Wheel RF Panel Controller
Touching Wheel Panel Controller
2.4G 6A 3CH RF Touch Ring Controller
8A 3CH RF Touch Wheel RGB Controller
433Mhz 44Key 4A 3CH IR Controller
2.4G 3CH 8A Touch Ring RGB Controller
http://www.greeled.net/uploadfile/03/60/6003/21141/11/23/led-controller-catalogue.pdf

Touching Wheel RF RGB Controller

433 5Key Trouching Ring Led Controller

433RF Full Trouching  Ring Led Controller

433RF Touch Led Controller(Plastic Shell)

433RF Touch Led Controller(Golden Shell)

5Key Touching Wheel Led Controller

Full Touching Wheel RGB Led Controller

http://www.greeled.net/uploadfile/03/60/6003/21141/11/23/led-controller-catalogue.pdf

RGBW LED Conrtroller

40Key IR RGBW LED Controller

2.4G Touching RGBW Wireless Controller

6A 4CH RGBW Amplifier

16Key IR Wireless RGBW Controller

http://www.greeled.net/uploadfile/03/60/6003/21141/11/23/led-controller-catalogue.pdf

30mm 7pcs smd2835 high bright led module

30mm 7pcs smd2835 high bright led module
http://www.greeled.net/2835-30mm-round-led-module.html
Model No.GEMO7W2835
Input Voltage: 24V DC
LED QTY:7PCS SMD2835
Power Consumption: 0.48 W/Pcs
Waterpoof Type: IP67
Products Size :39mm*39mm
Punch hole:30mm
Connecting 30pcs/strand
Emiting color:white, R, G,B,Y etc
Video Show: http://youtu.be/Yk6LQ5nvjJI

18 key digital led controller

18 Key SPI Digital LED Controller
http://www.greeled.net/18-key-spi-dream-color-controller.html
GECOSPI18KEY(18 Key SPI Digital LED Controller ) is suitable for UCS1903 (WS2811,TM1809,TM1804 etc) output applications which drive LED directly. It is widely used in advertising, stage sets, home decorations, etc. It has many advantages such as low price, easy connection and simplicity to use. It has memory function. And adopt IR remote control, could adjust brightness, static color choices and various dynamic changes in lighting effects. There are 143 modes in total.
Technical Parameters
Working temperature:-20-60℃
Working voltage:DC12V
Output Signal:SPI Signal
IR Control Distance:≤10M
Static consumption:<1W
External dimension:L61*W35*H22 mm
Packing size:L106*W64*H56 mm
Net weight:80g
Gross weight:85g
Effects model:143
Control IC Number:1024 in max(high speed)
Controlled IC Model:Such as the WS2811,TM1803, TM1804, TM1809 , TM1812, UCS1903 etc.
Features
1.Adopt IR 18 key remote control, mode/speed/IC number are adjustable;
2.Memory function ;
3.143 modes totally,includes horse racing,running water,tailing,brush color,scanning,raindrops,etc.
4.When adjusting speed, press the button and hold, rapid bursts of adjustment.
Datasheet Download Link:
https://drive.google.com/file/d/0B97rs4obIwdZR0I5bHoxQTJNcHc/view?usp=sharing
Video Show: http://youtu.be/PJXoaVdLNz8      http://youtu.be/AU1FHpN9_1E

Dynamic Tunable White LED Strip

5630 Dynamic White Led Stripe

http://www.greeled.net/5630-dynamic-white-led-strip.html

3014 CCT Adjustable led strip

http://www.greeled.net/smd3014-color-temperature-led-strip.html

Double Line CCT Adjustable Led Strip

http://www.greeled.net/double-line-cct-adjustable-led-strip.html

112 LEDs/M 2835 Tunable White LED Tape

http://www.greeled.net/tunable-white-led-tape.html

5050 Dynamic/Tunable White LED Tape

http://www.greeled.net/cct-adjustable-strip/

DMX 512 PC LED Controller

PC USB-DMX 512 Controller
http://www.greeled.net/usb-dmx-512-box-controller.html
Model: GECODMX512-USB
      USB-DMX 512 BOX Controller connect with the USB interface of computer, through the friendly operation interface of computer, in order to achieve the aim of controlling lamps, It has a lot of advantages such as easy operation and simplicity to use .
      Support windows XP /2000 /98se operation system, windows XP identify automatically,
Plug-and-play without installing drivers.
      USB interface connect with computer, computer interface supply power directly,
the maximum working current is 135mA.
      Build random storage, data transfer smoothly.
      PC lamp control software adopt powerful PC FreeStyle lamp control software, it can upgrade Constantly.
The hardware composed of 3 parts:
1. One piece of DMX adapter
2. One piece of interface wire.
3. A suit of FreeStyler light control software(CD)
Technical Parameters:
Working temperature: 0-60 ℃
Supply voltage: DC5V
External dimension: L128ΧW100ΧH40mm
Packing size: L180ΧW150ΧH60mm
Net weight: 350g
Gross weight: 450g

335 120 PCS Side-View LED Stripe

335 120 PCS Side-View LED Stripe
http://www.greeled.net/335-sideview-emitting-led-tape.html
Video Show: http://youtu.be/c4_gXWwyKFY
Model No.:GE60W335A(Non-Waterproof)
                   GE60W335C(IP65 Glue Sealing Waterproof)
Working Voltage: DC12V
Led QTY: 120leds/M
Led Type: SMD335
Dimension: 5000*10*3mm
PCB Color: White/Brown color
Power Consumption: 9.6W/M
Emitting Color:Cold white,Pure white, Warm white
Waterproof IP grade:Non-waterproof or IP65 epoxy waterproof

8MM WS2811 RGB LED

8MM WS2811 RGB LED
http://www.greeled.net/f8-chip-built-in-led.html
WS2811 chip built in
DC5V as working voltage
leads spacing: 1.5mm
VF: (R 1.8-2.3V  G 3.0-3.4V   B 3.0-3.4V)
Wavelength: (R 620-630nm  G 512-520nm B 460-470nm)
Current: 20mA each color
Beam angle: 30 Degree
Datasheet download address:
http://www.greeled.net/uploadfile/03/60/6003/21141/10/18/8mm-ws2811-chip-on-die-led.pdf

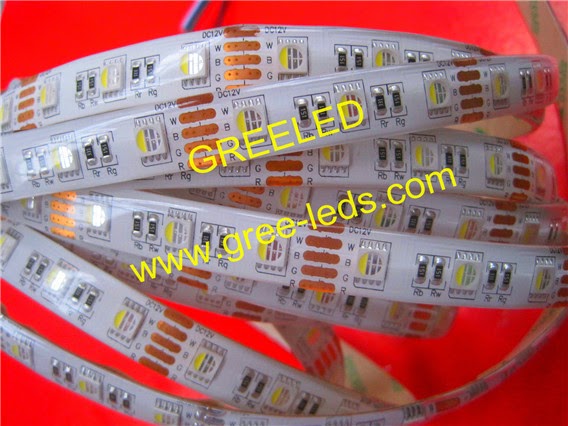

Epoxy Waterproof RGBW LED Belt Ribbon

Epoxy Waterproof RGBW LED Belt Ribbon
http://www.greeled.net/ip65-waterproof-rgbw-led-strip.html
Model No.:  GEN60RGBW5050B (IP65 waterproof)
1. Work Voltage: DC12V
2. LED QTY: 60Pcs RGBW Chip-buit-in SMD5050
3. PCB width:12mm, white color
4. Led view angle: 120 degree
5. Power comsuption: Max 24W/M
6. Package: 5M/Reel
7. white color temeperature: 2700-3300K   5500-6500K    8000-10000K
RGBW Embed LED Link: http://www.greeled.net/5050-rgbw-led.html
RGBW Controller link: http://www.greeled.net/touching-rgbw-led-controller.html
RGBW Amplifier link: http://www.greeled.net/6a-4ch-rgbw-led-amplifier.html

12V 30LED/M DMX LED Strip

12V 30LED/M DMX LED Strip
http://www.greeled.net/12v-30leds-dmx-strip.html
Model No.: GE30RGB512A (Non-waterproof)
                   GE30RGB512C (IP67waterproof)
1. Work Voltage: DC12V
2. LED QTY: 30PCS/M
3. PCB width:12mm, white color
4. Led view angle: 120 degree
5. Power comsuption: Max 7.2W/M
6. Package: 5M/Reel
7.  Emitting Color: RGB/W/R/G/B/other single color
8. Waterproof IP grade:silicon tube IP67/ non-waterproof
9. Pixel QTY: 10Pixels/M (Each 3leds addressable as a pixel,3Chanel)
10. RS485 Receiver Module Built In the UCS512A IC.
11. Compatible withDMX512 (1990) signaling protocol.
12. Input Signal Type: DMX512 differentinal Signal.
13. Based on the DMX512 differential parallel protocol.
Chip Datasheet Download Link:
https://app.box.com/s/5gpixbbmjxtyn51efkxz

24V 60LED/M DMX LED Strip

24V 60LED/M DMX LED Strip
http://www.greeled.net/24v-dmx-led-strip.html
Model No.: GE60RGB512A (Non-waterproof)
                   GE60RGB512C (IP67waterproof)
1. Work Voltage: DC24V
2. LED QTY: 60PCS/M
3. PCB width:12mm, white color
4. Led view angle: 120 degree
5. Power comsuption: Max 14.4W/M
6. Package: 5M/Reel
7.  Emitting Color: RGB/W/R/G/B/other single color
8. Waterproof IP grade:silicon tube IP67/ non-waterproof
9. Pixel QTY: 10Pixels/M (Each 6leds addressable as a pixel,3Chanel)
10. RS485 Receiver Module Built In the UCS512A IC.
11. Compatible withDMX512 (1990) signaling protocol.
12. Input Signal Type: DMX512 differentinal Signal.
13. Based on the DMX512 differential parallel protocol.
Chip Datasheet Download Link:
https://app.box.com/s/5gpixbbmjxtyn51efkxz

UCS2912 RGBW addressable led strip

UCS2912 RGBW addressable led strip
http://www.greeled.net/rgbw-addressable-led-strip.html
Model No. GE60RGBW2912A (non-waterproof)
GE60RGBW2912C (IP67 waterproof)
Working Voltage: DC5V
Led QTY: 60leds/M
Led Type: RGBW embedded in SMD5050
IC Type: UCS2912
Dimension: 5000mm*16.0mm*4.0mm (IP67 waterproof)
5000mm*14.0mm*2.5mm(non-waterproof)
Pixel QTY: 60pixels/m ,each led addressable
PCB Color: White
Power Consumption: Max 14.4W/M
Brightness Level: 256 level
Emitting Color: RGBW (other single color also available)
View angle: 120 degree
UCS2912 chip datasheet download address:
https://app.box.com/s/by3ebhnzeuubsrjfrcrh
RGBW Chip built in SMD5050 download address:
https://app.box.com/s/kx5l7p29pss7z1i2kekd

RGBW LED LPD8806 Streifen Tape

RGBW LED LPD8806 Streifen Tape
http://www.greeled.net/5v-lpd8806-52p-strip.html
Model: GE52RGBW8806A(Non-waterproof),
GE52RGBW8806C(IP67 Waterproof)
Working Voltage: DC5V
Led QTY: 52leds/M(26PCS RGB LED + 26PCS White LED)
Led Type: SMD5050
IC Type: 26pcs LPD8806 IC
Dimension: 5000mm*16.0mm*4mm (waterproof)
5000mm*15mm*2.5mm(non-waterproof)
Pixel QTY: 52pixels/m ,each led addressable
PCB Color: White color
Power Consumption: Max 15.6W/M
Brightness Level: 256 level
Emitting Color: RGBW
Waterproof IP grade:silicon tube IP67/ non-waterproof
JST SM connector specification:
Black wire----Data Green wire---CLK
Red wire: +5V DC Blue wire---GND

1m 32led APA102 addressable strip

1m 32led APA102 addressable strip
http://www.greeled.net/apa102-led.html
Model No.  GE32RGB102A2 (non-waterproof)
                    GE32RGB102B2(IP65 waterproof)
                    GE32RGB102C2(IP67 waterproof)
 Working Voltage: DC5V
 Led QTY:  32eds/M
 Led Type: SMD5050
 IC Type:   APA102 Chip Built In RGB LED
Dimension: 5000mm*12.0mm*4.0mm (IP67 waterproof)
                      5000mm*10.0mm*3.0mm (IP65 waterproof)
                     5000mm*10.0mm*2.5mm(non-waterproof)
 Pixel QTY: 32pixels/m ,each led addressable
 PCB Color: White or Black color
 Brightness Level: 256 level
 Emitting Color: RGB color
Emitting Angle: 160 Degree(120 Degree also available)
 Waterproof IP grade:silicon tube IP67/glue sealing IP65/Non-waterproof
4PIN JST SM Connecoter Specification:
Black: +5V     Green: DAT      Red: CLK     Blue: GND
APA102 chip download address:
https://app.box.com/s/8oevda04rtxruji01vje
